Inclined Hole Brass Distributor
![<!--<$[標題]>begin-->Inclined Hole Brass Distributor<!--<$[標題]>end-->](/picture/0/015676e957084ec18d42035e57070c43.png)
Inclined Hole Brass Distributor is mainly used for refrigerant uniform distribution in room, module machine,VRV, unit machine air conditioning systems
Material：C3771HPb59-1
Maximum Working Pressure：4.5Mpa
Medium Temperature：-40℃~130℃
Applicable Refrigerants：R410A、R32、R134a、R404A、R507、R290、R407C、R22
Purpose: lt is mainly used for refrigerant uniform distribution in room, module machine,VRV, unit machine air conditioning systems
SPECIFICATION (unit:mm)
序號 | 尺寸 | 孔數(shù) | |||
A | B | D | E | ||
1 | 40 | 4.8 | 8.05 | 20.6 | 5 |
2 | 37 | 4.1 | 9.6 | 22 | 6 |
3 | 39 | 4.1 | 9.6 | 25 | 8 |
4 | 40 | 3.7 | 9.7 | 26 | 6 |
5 | 37 | 4.1 | 12.2 | 30 | 6 |
6 | 43 | 4.2 | 12.2 | 32 | 10 |
7 | 41 | 4.2 | 16.2 | 34 | 9 |
8 | 56 | 6.1 | 22.1 | 45 | 9 |
9 | 56 | 6.1 | 28.7 | 54 | 13 |
10 | 70 | 6.1 | 38.3 | 65 | 18 |
11 | 70 | 6.1 | 38.3 | 74 | 20 |
Note: The products can be customized by drawings

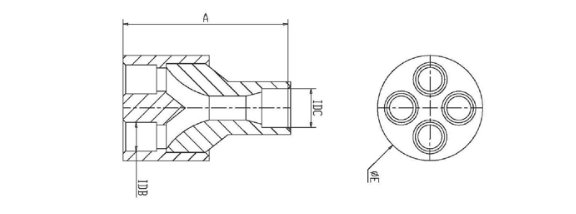

DIMENSIONS
