![<!--<$[標(biāo)題]>begin-->Exhaust Receiver Assembly<!--<$[標(biāo)題]>end-->](/picture/0/cb69e2f47a8d4eee8473fd6711889df4.png)
Exhaust Receiver Assembly is mainly used for gas collection of heat exchanger for room, module machine VRV, unit machine air conditioning system to provide flow path for refrigerant
產(chǎn)品簡介:
Maximum Working Pressure：1.0Mpa
Medium Temperature：-40℃~100℃
Applicable Refrigerants:R410A, R32, R134a, R404A, R507, R290, R407C, R22
Purpose: lt is mainly used for gas collection of heat exchanger for room, module machine VRV, unit machine air conditioning system to provide flow path for refrigerant
FEATURES:
1、The product is made by automatic numerical control drilling flanging and bending equipment, and the whole welding process is protected by nitrogen to ensure no oxide formation inside the copper tube.
2、The product uses nitrogen detection to avoid leakage hazards.

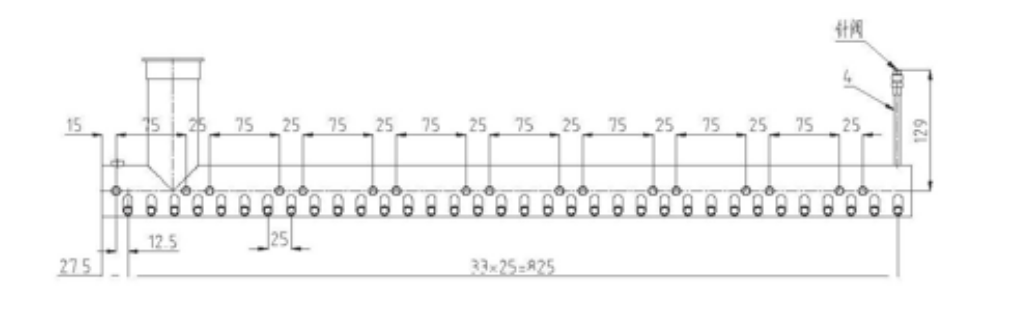

DIMENSIONS
Basic Parameters of Main Pipe Processing (unit: mm)
No. | Diameter of main pipe | Min. | Max. | Min. distance | ||
Bore ID | Height(h) | Bore ID | Height(h) | |||
1 | Φ7.94 | 5.2 | 1.2 | 19.05 | ||
2 | Φ9.52 | 5.2 | 1.2 | 19.05 | ||
3 | Φ12 | 6.2 | 1.5 | 7.2 | 1.5 | 19.05 |
4 | Φ12.7 | 6.2 | 1.5 | 7.2 | 1.5 | 19.05 |
5 | Φ15.88 | 6.2 | 1.5 | 9.7 | 1.5 | 19.05 |
6 | Φ19 | 6.2 | 1.5 | 9.7 | 1.5 | 19.05 |
7 | Φ22 | 6.2 | 1.5 | 22 | 1.5 | 19.05 |
8 | Φ25 | 6.2 | 1.5 | 25 | 1.5 | 19.05 |
9 | Φ34.9 | 6.2 | 1.5 | 34.9 | 1.5 | 19.05 |
10 | Φ41.3 | 6.2 | 1.5 | 41.3 | 1.5 | 19.05 |
11 | Φ48 | 6.2 | 1.5 | 48 | 1.5 | 19.05 |
12 | Φ76 | 6.2 | 1.5 | 48 | 1.5 | 19.05 |
13 | Φ133 | 6.2 | 1.5 | 48 | 1.5 | 19.05 |
14 | Φ150 | 6.2 | 1.5 | 48 | 1.5 | 19.05 |
SPECIFICATION (Unit: mm)
No. | Diameter of main pipe | Diameter of hole | Hole no. |
1 | Φ7.94 | 5.2 | 3~12 |
2 | Φ9.52 | 5.2 | 2~10 |
3 | Φ12 | 6.2 | 4~15 |
4 | Φ12.7 | 6.2 | 3~17 |
5 | Φ15.88 | 6.2/7.2 | 4~15 |
6 | Φ19 | 7.2/9.7 | 2~27 |
7 | Φ22 | 6.2/7.2/9.7 | 5~31 |
8 | Φ25 | 6.2/7.2/9.7 | 5~24 |
9 | Φ34.9 | 6.2/7.2/9.7 | 5~28 |
10 | Φ41.3 | 6.2/7.2/9.7 | 5~33 |
11 | Φ48 | 6.2/7.2/9.7 | 5~33 |
12 | Φ76 | 6.2/7.2/9.7 | 5~33 |
13 | Φ133 | 6.2/7.2/9.7 | 5~33 |
14 | Φ150 | 6.2/7.2/9.7 | 5~33 |
